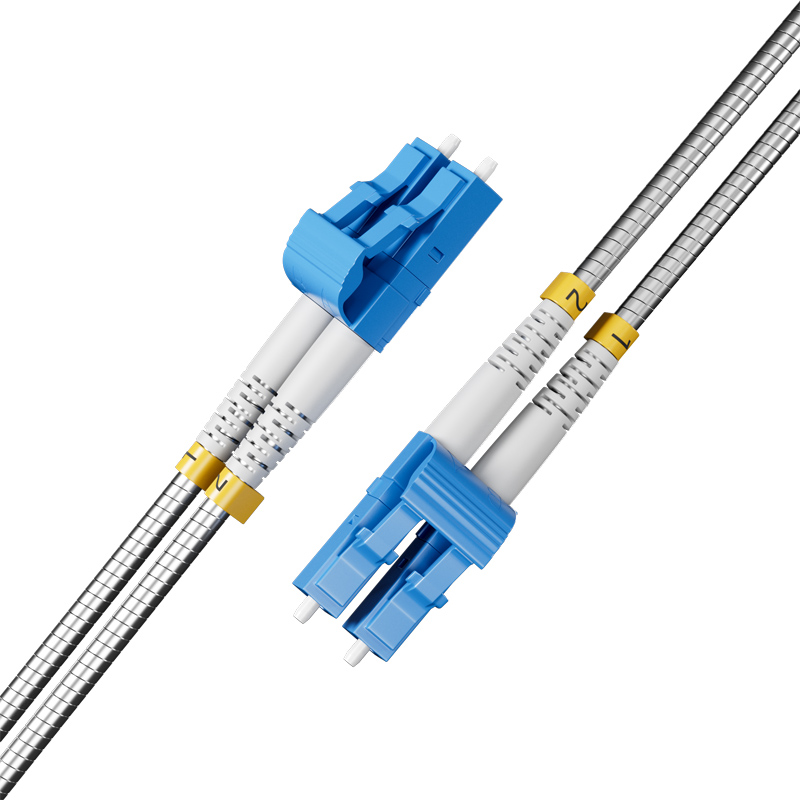

FTTA outdoor CPRI LC to LC fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.

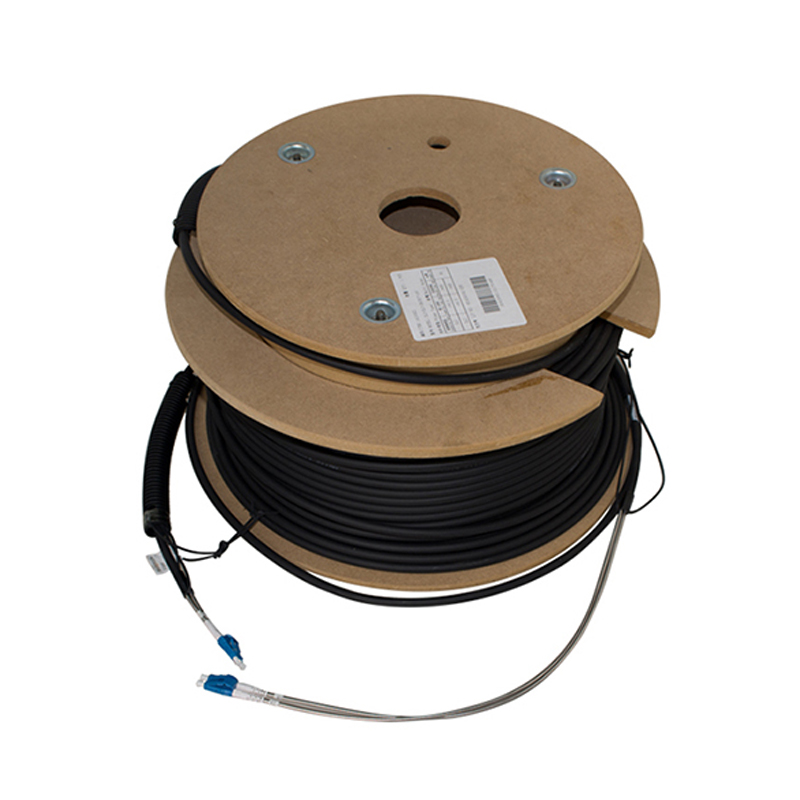

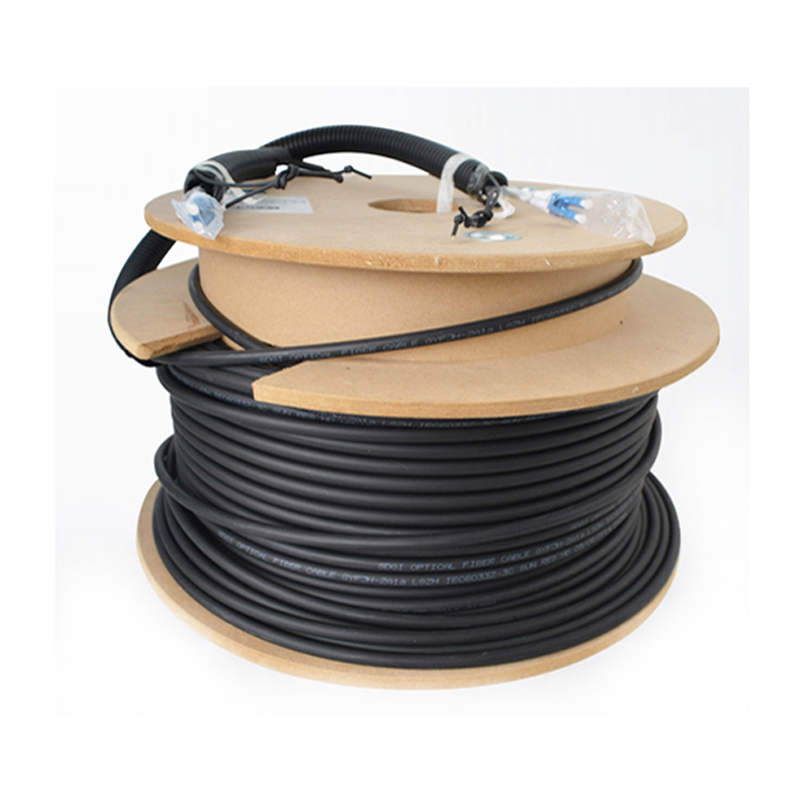

Roll package used for long length meters, SC, FC, ST connectors optional:
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients
|
Item |
Description |
Standard |
|
|
Cable Model |
GYFJH-2A1 |
|
|
|
Number Optic-cable Core |
2 |
|
|
|
Weight Kg/km |
45.0 |
|
|
|
Outside Dia. mm |
Φ7.0±0.2 |
|
|
|
Outer Sheath |
material |
LSZH |
YD/T 1113-2001 |
|
color |
BLACK |
|
|
|
thickness |
1mm |
|
|
|
Tight buffer |
material |
FRP |
|
|
Dia. mm |
Φ1.0±0.1 |
|
|
|
Subunit |
Quantity(pcs) |
2 |
|
|
Sheath Dia. |
Φ2±0.1mm |
|
|
|
Sheath Material & Color |
LSZH & yellow |
|
|
|
Reinforced core |
aramid fiber |
|
|
|
Mark Unit |
Differ A,B,C and D fiber within 10mm |
GB/T 6995.2 |
|
|
Fiber core |
Fiber Type |
50/125 |
|
|
sheath color |
white |
|
|
|
Sheath material |
LSZH |
|
|
|
Out-Dia fiber for Tight layer |
0.90±0.05 mm |
|
|
|
Fiber specification |
50/125 |
|
|
|
Allowable Tension |
Short term ≥500N |
|
|
|
Long term ≥300N |
|
||
|
inflaming retarding Class |
Confirm to IEC60332-3C |
|
|
|
Mini Bending radius |
10D |
|
|
|
Fiber Cable Printing |
Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date |
|
|
|
Working life |
≥25years |
|
|
*all materials confirm to RoHS
Application
3G 4G 5G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
FTTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
