Description:

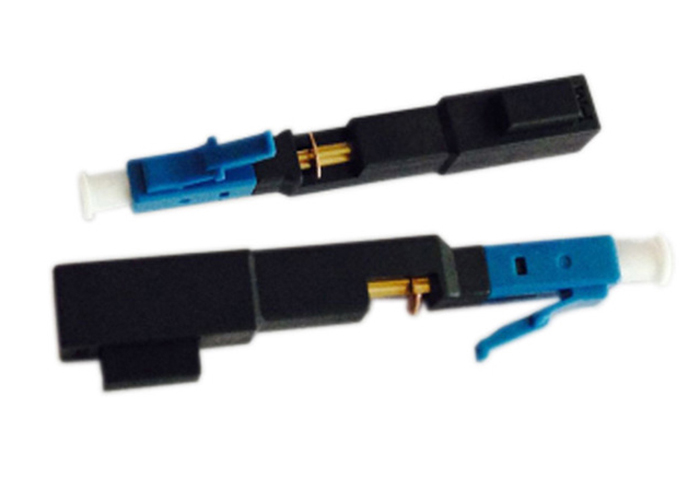

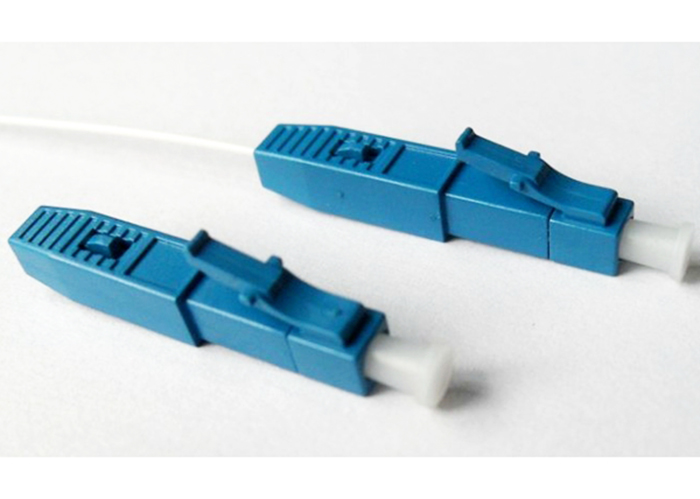

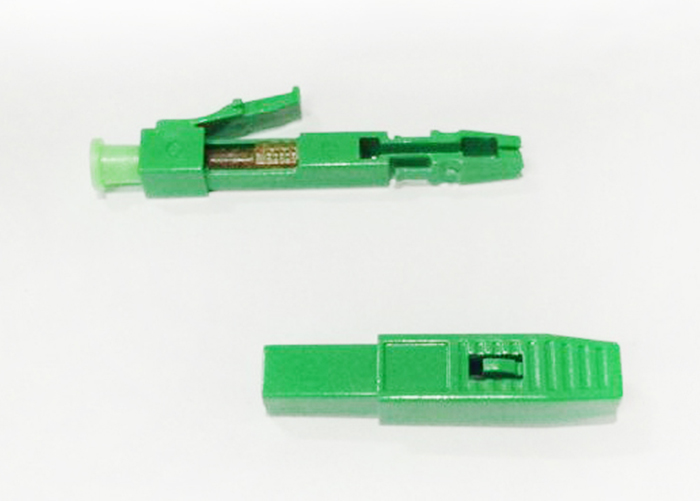

the fast connector is designed for high quality and high efficiency for installation.
the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
adopted fiber pre-installed structure.
could be reused, and convenient for field installation.
Feature:
precise mechanical dimensions
low insertion loss, high return loss
comply standard of IEC61754-4
ROHS compliant
Application:
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
Specifications:
|
Item |
Insertion Loss |
Mechanical resistance |
Repeatability |
Operating Temperature |
|
SM/PC |
≤0.2dB |
200-600g |
0.2dB(1000times) |
-40°C~+80°C |
|
SM/APC |
≤0.2dB |
200-600g |
0.2dB(1000times) |
-40°C~+80°C |
|
MM/PC |
≤0.3dB |
200-600g |
0.3dB(1000times) |
-40°C~+80°C |
