Feature
1) User familiar industry interface, using high impact plastic PC/ABS
2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
4) Up to 16 FTTH drops ,2 inlet ports, 16 outlet ports

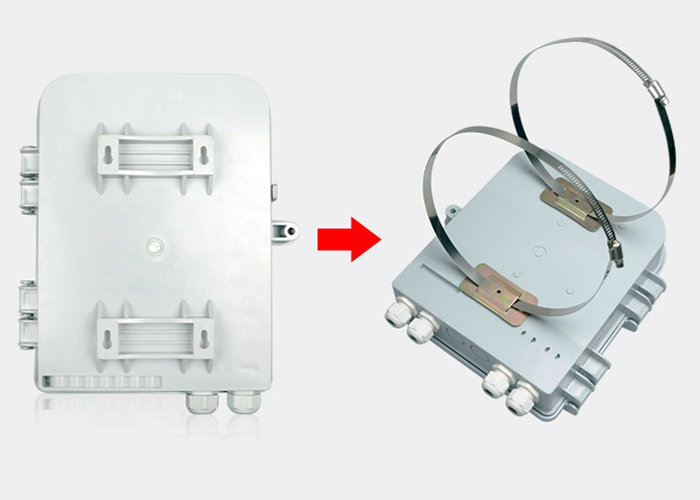

5) Wall and pole mountable
Specifications :
|
Model No |
FTT-H308A |
|

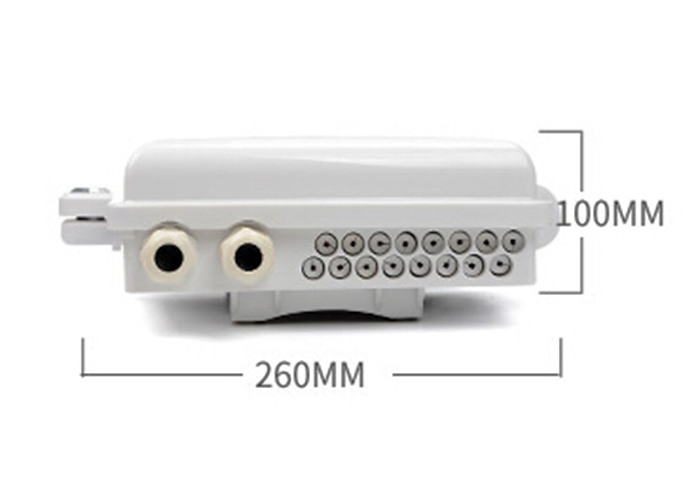

Dimension( L×W×H ) |
290mm×260mm×95mm |
|
Weight(gross) |
1.2kg |
|
Function |
cable terminal,passive splitter |
|
Adaptor type |
SC /LC |
|
Material |
ABS |
|
Max ratio |
1:16 |
|
Max capacity(F) |
16 |
|
Environment 1. Tempreture: -40°C—60°C
2. Ambient Humidity : 95% above 40°C
3. Air pressure: 62kPa—105kPa |
Accessories: 1. 2 hoops (outdoor air frame) Optional
2. wall mount kit 1 set
3. two lock keys used waterproof lock |
