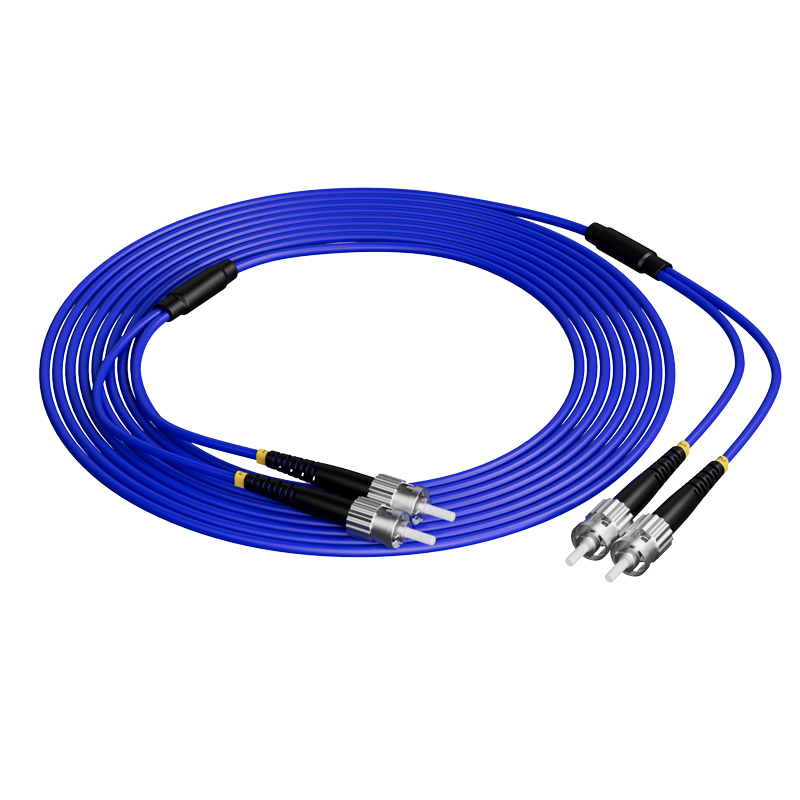

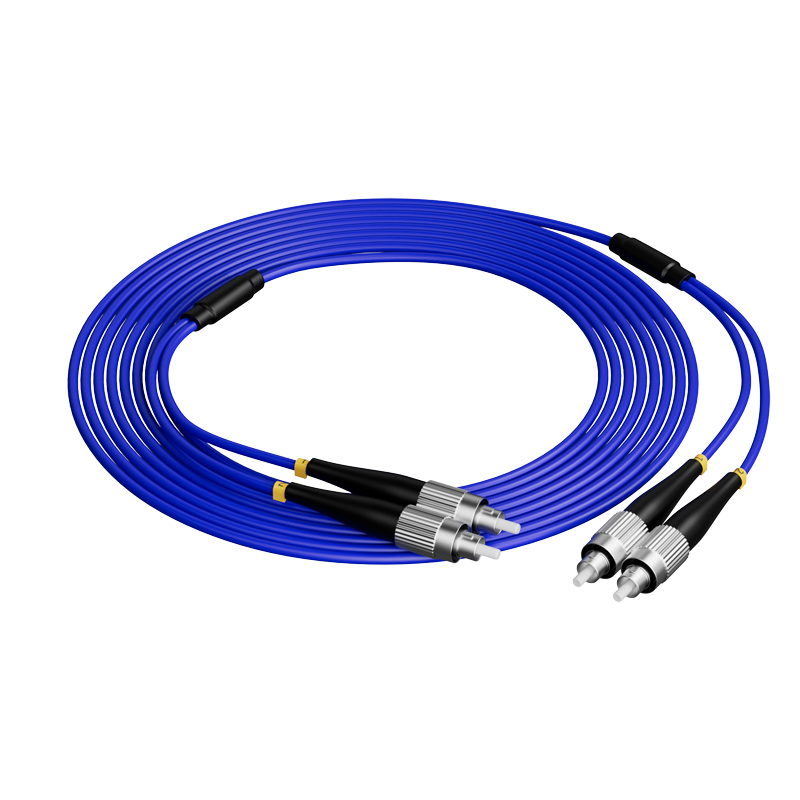

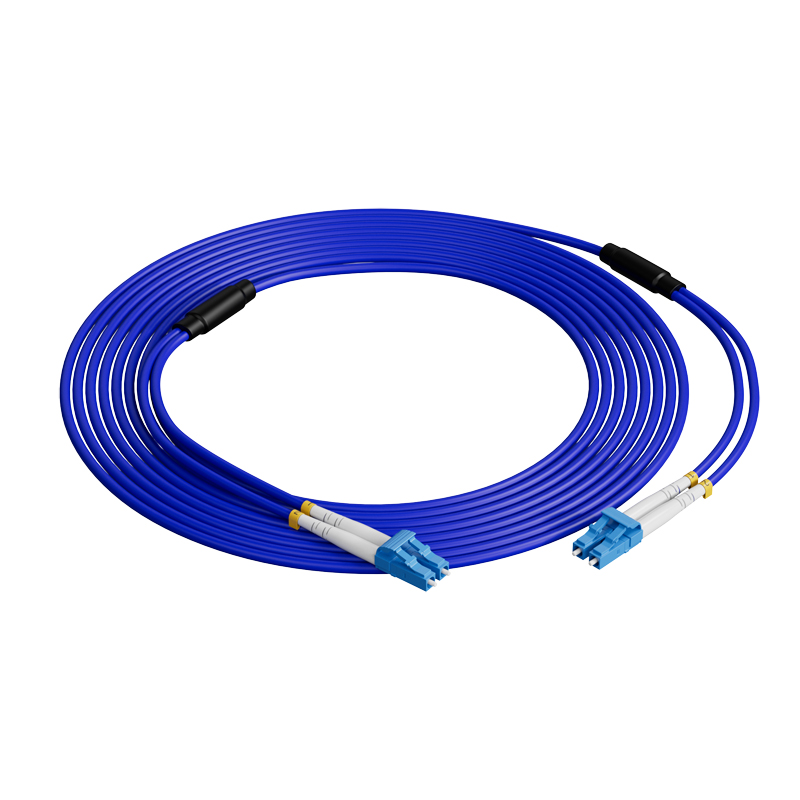

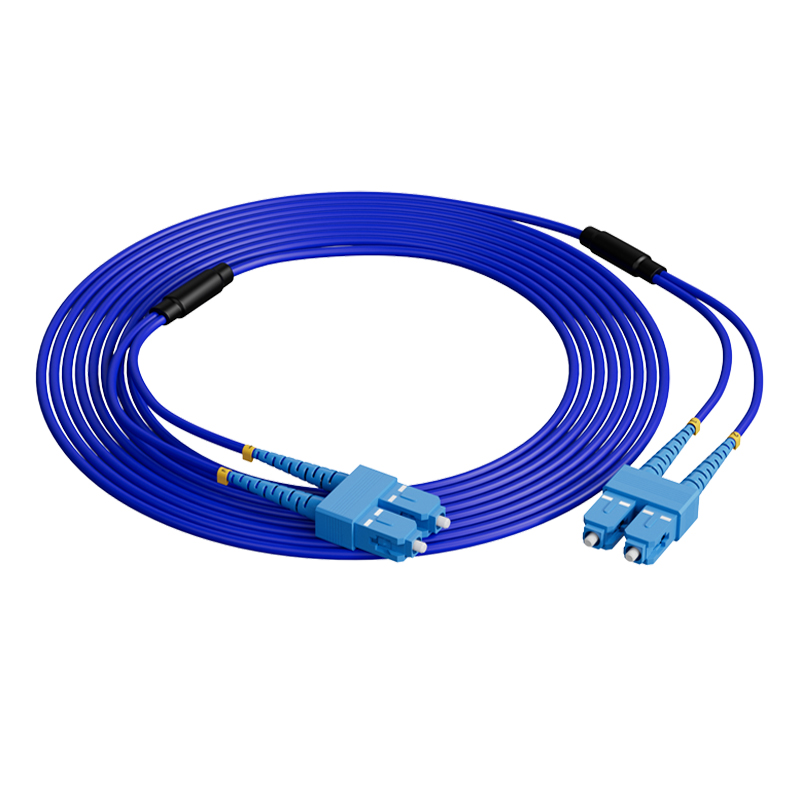

Singlemode Duplex Armored Fiber Optic Patch Cords

Introduction:

Armored fiber optic patch cords are easy to use in harsh environment, with stainless steel tube inside the outer jacket to protect the central unit of the cable, what is more, they are flexible as well, handling these armored fiber optic patch cables are as easy as handling electric cables

We provide single mode, multimode, SC, FC, ST, LC, MU, MTRJ, UPC, APC, simplex, duplex, 9/125um, 50/125um, 62.5/125um armored fiber optic patch cord.

Specification:

Features:

1. Improves and simplifies fiber routing
2. Decreases fiber management space
3. OEM or customized for special applications
4. Low insertion loss and reflectance
5. High Density
6. Snap-In cassette panel for easy installation, removal and expansion

Applications:

• Optical System Access Network
• Telecommunications networks
• Broadband/CATV networks
• Data communications networks, including high-bandwidth equipment

FIBER CHARACTERISTICS:

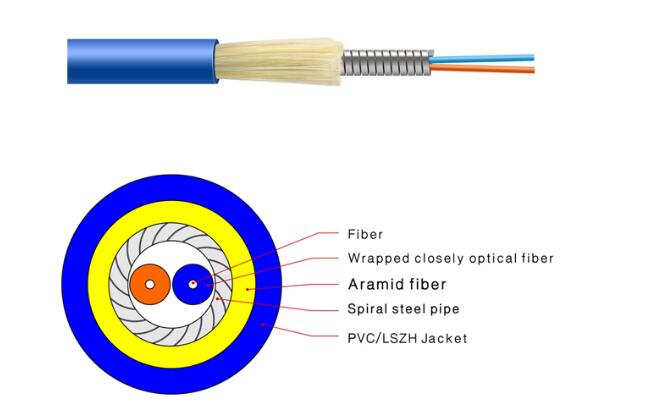

Armored fiber optic cable―Ø3.0*2 mm Duplex cable

Picture：

Specifications：

1). Tight-buffered fiber： SM or MM available  0.9mm tight-buffered fiber  (YOFC or Draka cable)

    Color:SM/ White or yellow     MM/Blue or orange

    General attenuation:SM:1310 um≤0.35dB/km;1550 um≤0.25dB/km

                         MM:850 um≤3.0dB/km;1300 um≤1.0dB/km

 2). Stainless steel tube：

material：SUS204

Outer diameter（D）：1.65±0.05mm

Insider diameter (d): 1.15±0.05mm

Thickness（t）：0.25±0.02 mm

Gap(p)：0.22±0.02 mm

       Compression resistant strength:≥300KGf/100MM

 3). Arm yarn：

model:1000dtex

Number:4 branch outside the stainless steel tube

Tensile strength:Short term:≥300N: long  term:≥150N.

4). jacket：

    Material：PVC/LSZH /OFNP

    Color:SM/blue; MM/gray

    Thickness（t）：0.45±0.05 mm

    Outer diameter（D）：2.9±0.1mm
