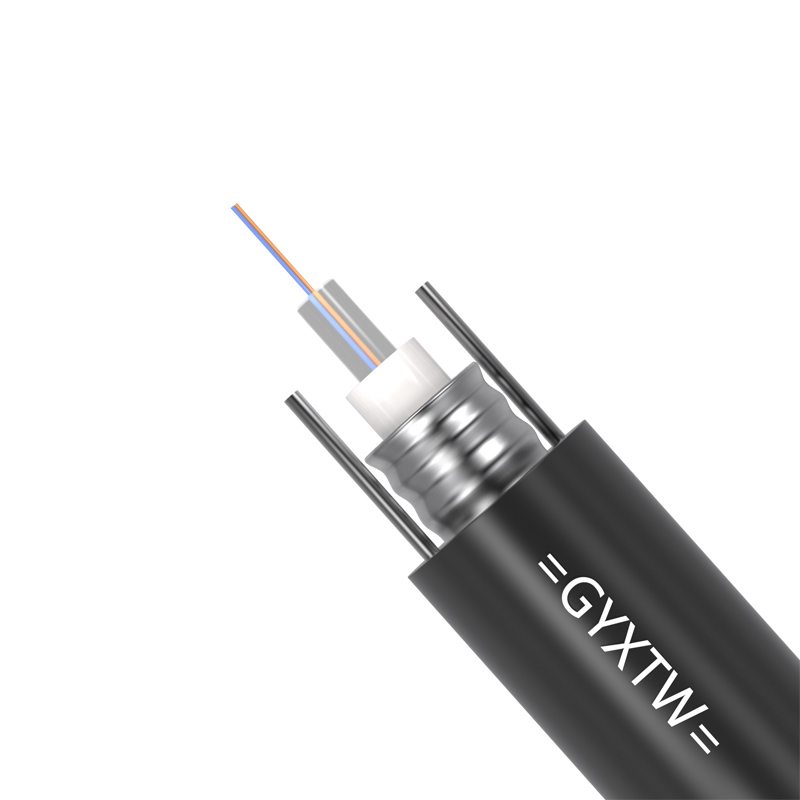

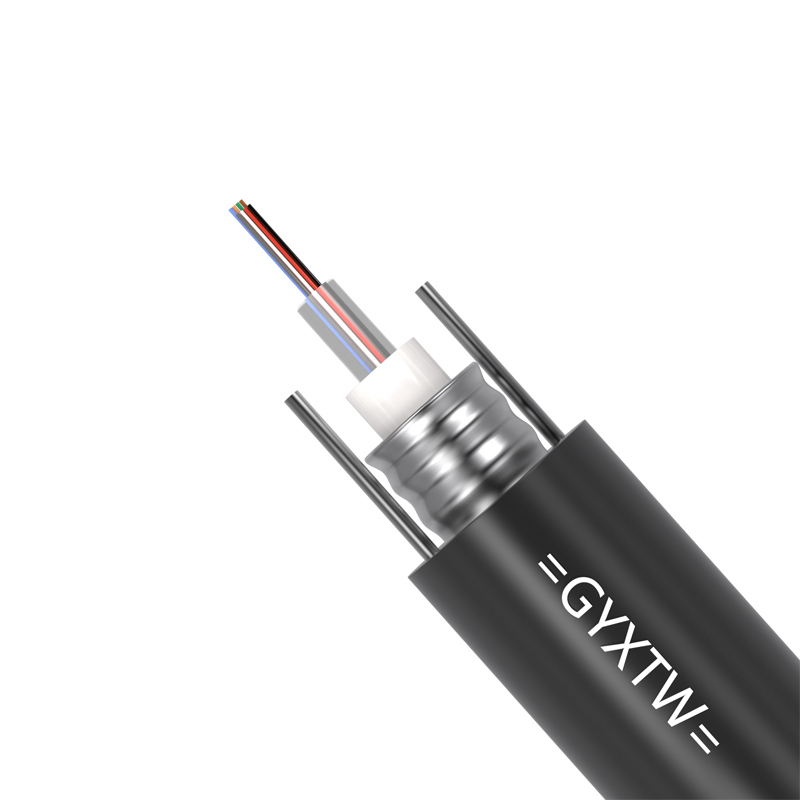

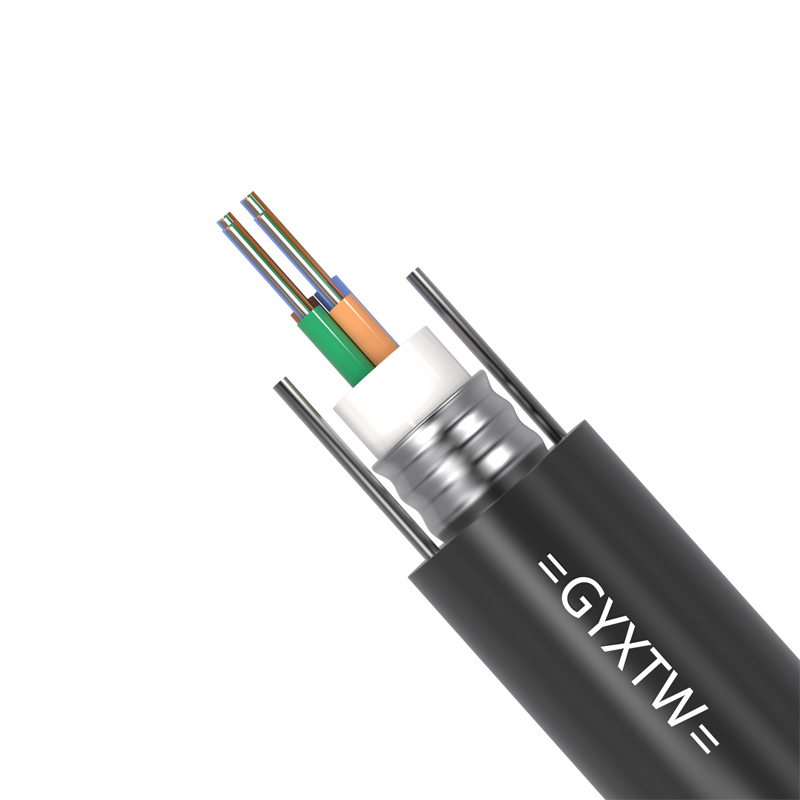

Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene out jacket. Two embedded steel wire provide desire tension.

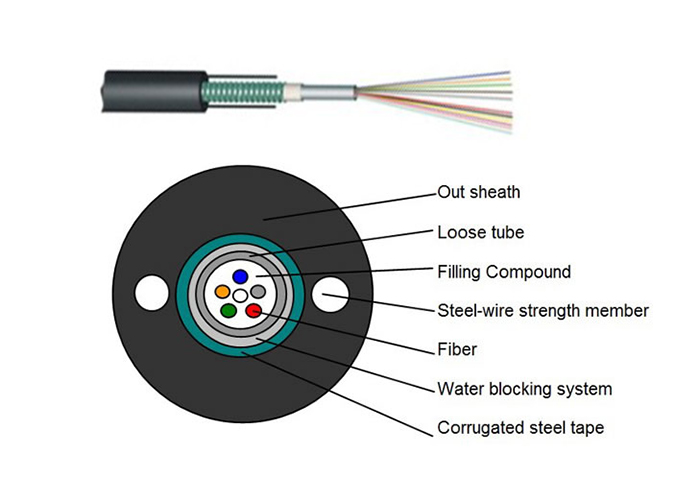

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two side of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene(PE) sheath.
Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene out jacket. Two embedded steel wire provide desire tension.
Cable Count
Out sheath
Diameter
Weight
Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
（N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
（MM)
（KG)
short term
long term
short term
long term
short term
long term
（℃）
2
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
4
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
6
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
8
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
10
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
12
7.0/8.0
78.00
1500
600
1000
300
20D
10D
-40+60
Features
Uni-tube gel-filled construction for superior fiber protection.
CST armorto protect cable from rodent attack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and moisture-resistant design.

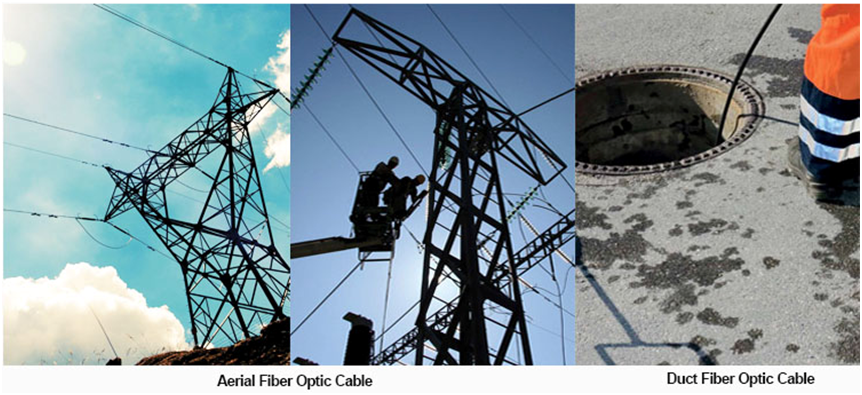

Application
