Product Description

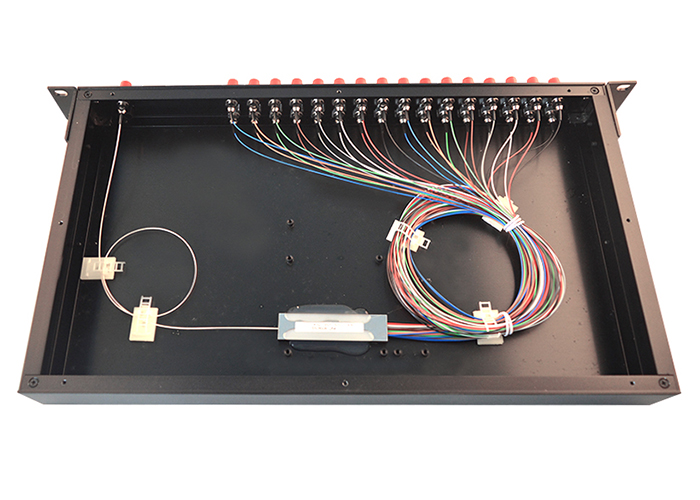

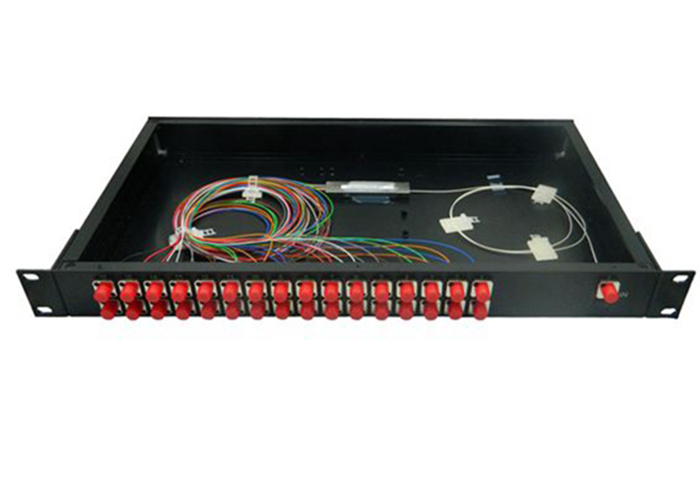

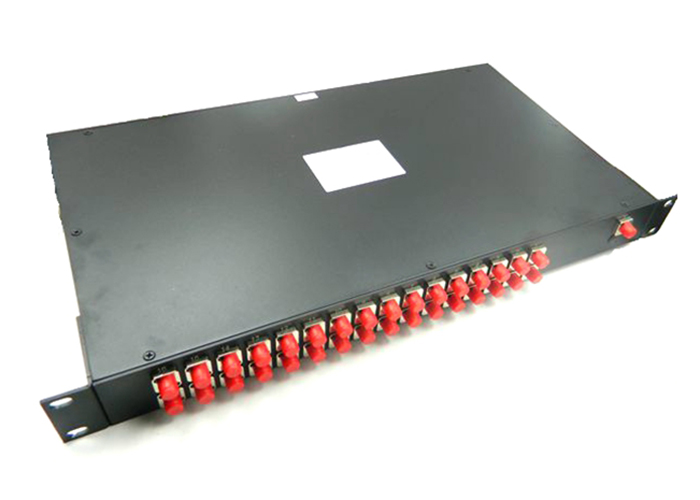

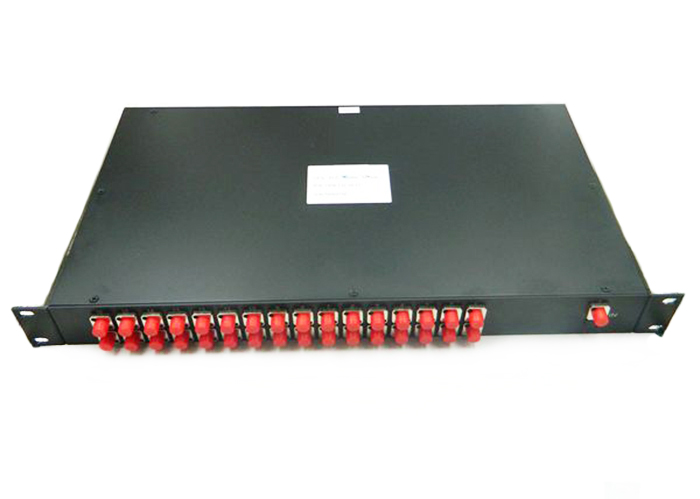

1U rack mount splitter's dimension can be customized based on customers' requirements, it can be placed into ODF to process the standard operation. The splitter modules are available with 1xN up to 64 and 2xN up to 64 channel configurations and also supplied with various connector cassette modules.
Benefits
• Excellent uniformity and low insertion loss
• Low PDL
• Excellent environmental stability
• Telcordia GR-1221 and GR-1220 qualified
• Suitable for fibre to the point (FTTX), fibre to the home (ftth), passive optical networks, LAN, CATV, test equipment
• Cable sizes 250μm, 900μm and 3mm
• Available as component, cassette mount, closure mount, panel mount
Specification
|
type |
1x4 |
2x4 |
1x8 |
2x8 |
1x16 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Fibre Type |
9/125um SMF28e or customer specified |
||||||||
|
Operation Wavelength |
1260~1650nm |
||||||||
|
Insertion Loss (dB)(Typ) |
<7.1 |
<7.3 |
<10.0 |
<10.3 |
<13.5 |
<14.0 |
<16.8 |
<17.3 |
<20.0 |
|
Insertion Loss (dB)(Max)1 |
<7.5 |
<7.7 |
<10.5 |
<10.8 |
<14.0 |
<14.7 |
<17.5 |
<18 |
<20.3 |
|
Uniformity (dB)(Max) |
<0.7 |
<1.0 |
<1.0 |
<1.2 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
Polarization Dependent Loss (dB)(Max) |
<0.3 |
<0.40 |
<0.30 |
<0.40 |
<0.3 |
||||
|
Directivity (dB)(Min) |
≥55 |
||||||||
|
Return Loss (dB)(Min) |
≥55 |
||||||||
|
Operating Temperature ( oC) |
-40 to +85 |
||||||||
|
Storage Temperature ( oC) |
-40 to +85 |
||||||||
1. Insertion loss is excluding connector loss at typically 0.2dB.
2. Ridge mount Planar splitters and DWDMs have been approved for FTTH applications
