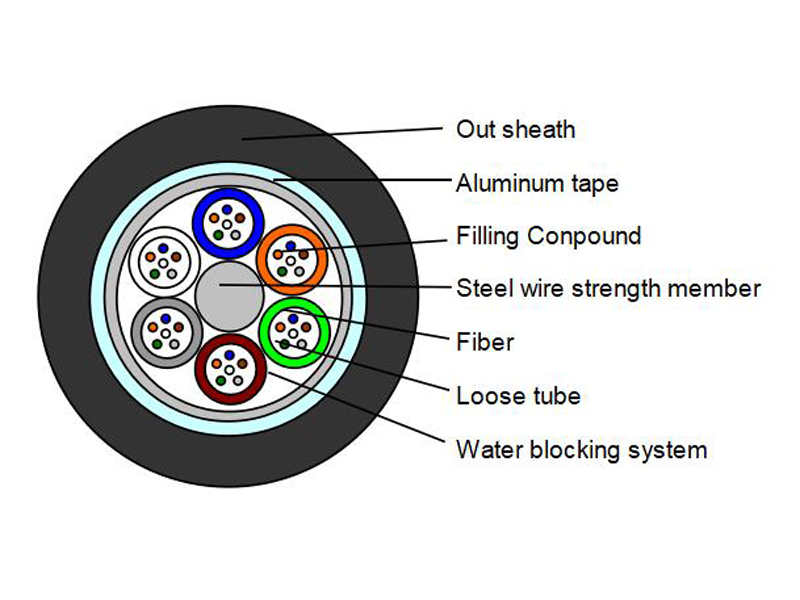

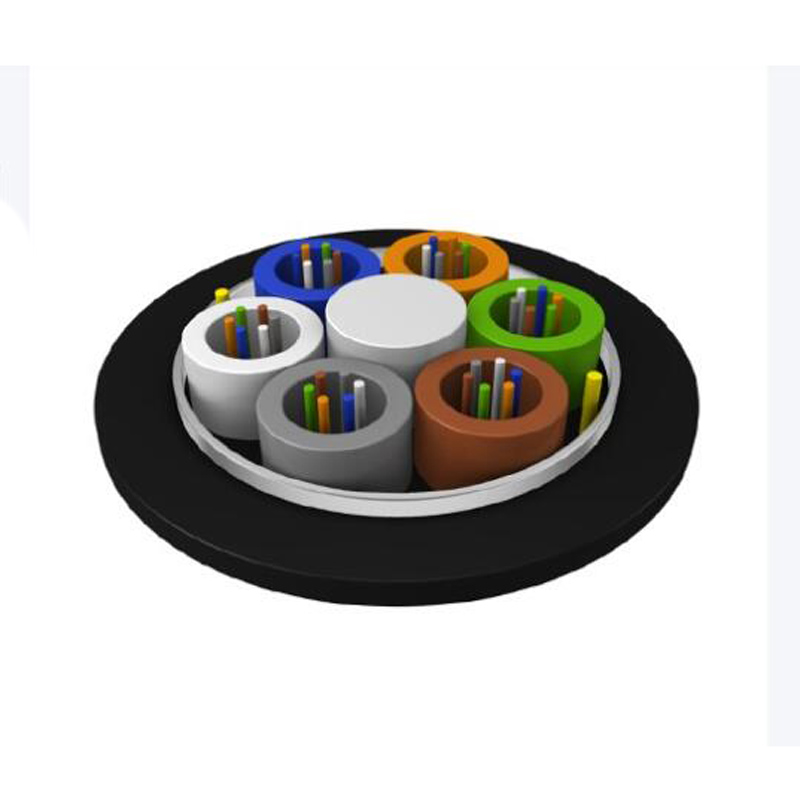

The coloring fiber are positioned in a central loose tube and Fillers are stranded around the metallic central strength member, it pass SZ into a compact, the PSP/APL is longitudinal covering, the cable is completed with PE sheath. In the loose tube, gap of the core is filled with the water-resistant filling compound.
Cable Count
Out sheath
Diameter
Weight
Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
（N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
(MM)
(KG)
short term
long term
short term
long term
short term
long term
(℃)
24
10.5
105.00
1500
600
1000
300
20D
10D
-40+60
36
10.5
105.00
1500
600
1000
300
20D
10D
-40+60
42
10.5
105.00
1500
600
1000
300
20D
10D
-40+60
48
12.0
150.00
1500
600
1000
300
20D
10D
-40+60
60
12.0
150.00
1500
600
1000
300
20D
10D
-40+60
72
12.0
150.00
1500
600
1000
300
20D
10D
-40+60
144
15.5
245.00
1500
600
1000
300
20D
10D
-40+60
288
21.5
415.00
1500
600
1000
300
20D
10D
-40+60

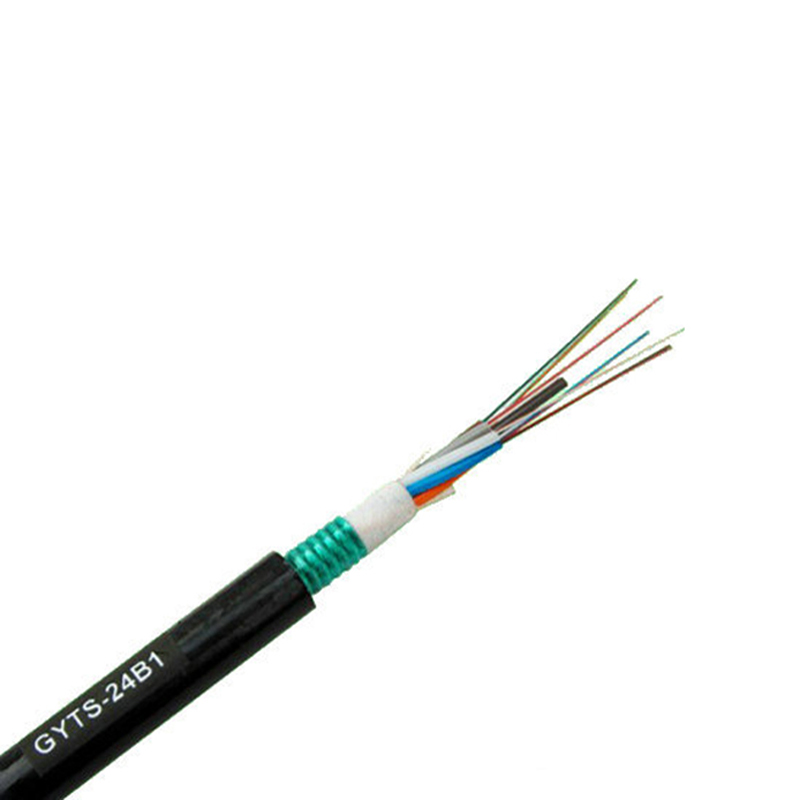

Steel wire strength.filler protect tube fiber.Aluminum tape armord.
Good ultra violet radiation resistant property.
Good moisture-resistance.
