Loose Tube Stranded Non-armored Fiber Optic Cable GYFTY

The coloring fiber are positioned in a central loose tube and Fillers are stranded around the Non-metallic central strength member, it pass SZ into a compact, the cable is completed with PE sheath. In the loose tube, gap of the core is filled with the water-resistant filling compound.

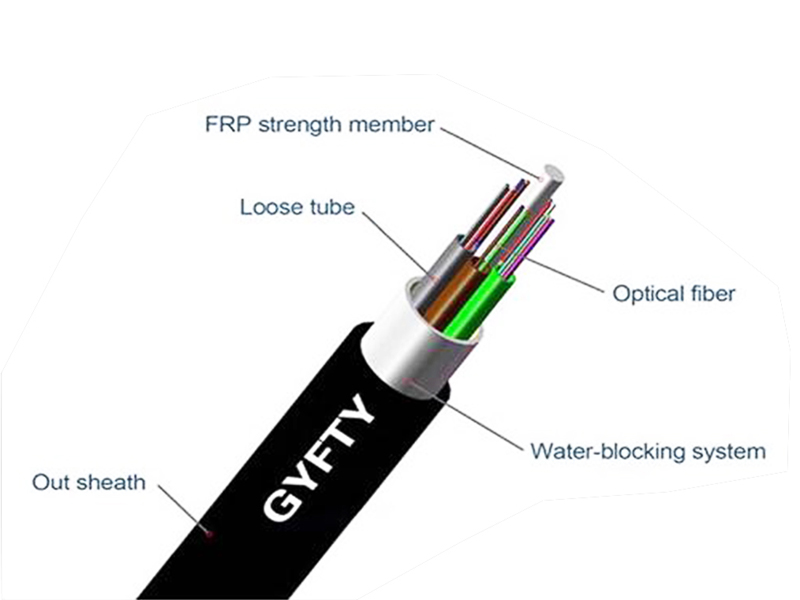

Cable structure:

Characteristics：

Non-metal strength member.
Filler protect loose tuber fiber.
Non-metal strength has an excellent anti-electromagnet ability.

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)			minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
	（MM)	（KG)	short term		long term	short term	long term	short term	long term	（℃）
24	9.8	65.00	1500		600	1000	300	20D	10D	-40+60
36	9.8	65.00	1500		600	1000	300	20D	10D	-40+60
42	9.8	65.00	1500		600	1000	300	20D	10D	-40+60
48	10.5	85.00	1500		600	1000	300	20D	10D	-40+60
60	10.5	85.00	1500		600	1000	300	20D	10D	-40+60
72	10.5	85.00	1500		600	1000	300	20D	10D	-40+60
144	18.0	185.00	1500		600	1000	300	20D	10D	-40+60

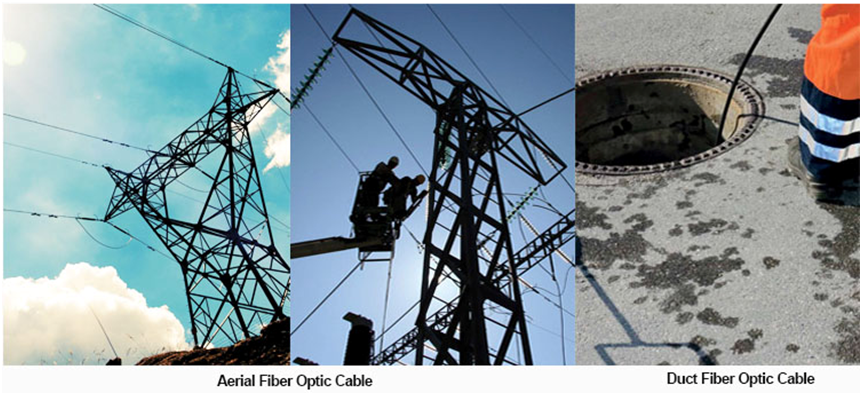

Application：

Adopted to Outdoor  distribution.
Adop0ted to trunk power transmission system.
access network and local network in high electromagnetic interfering places.
