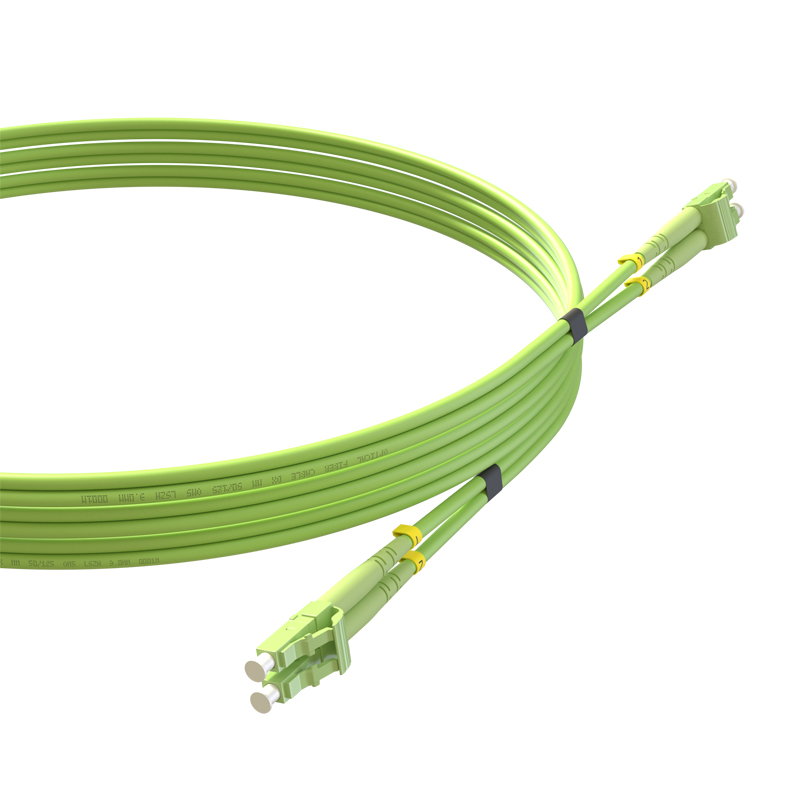

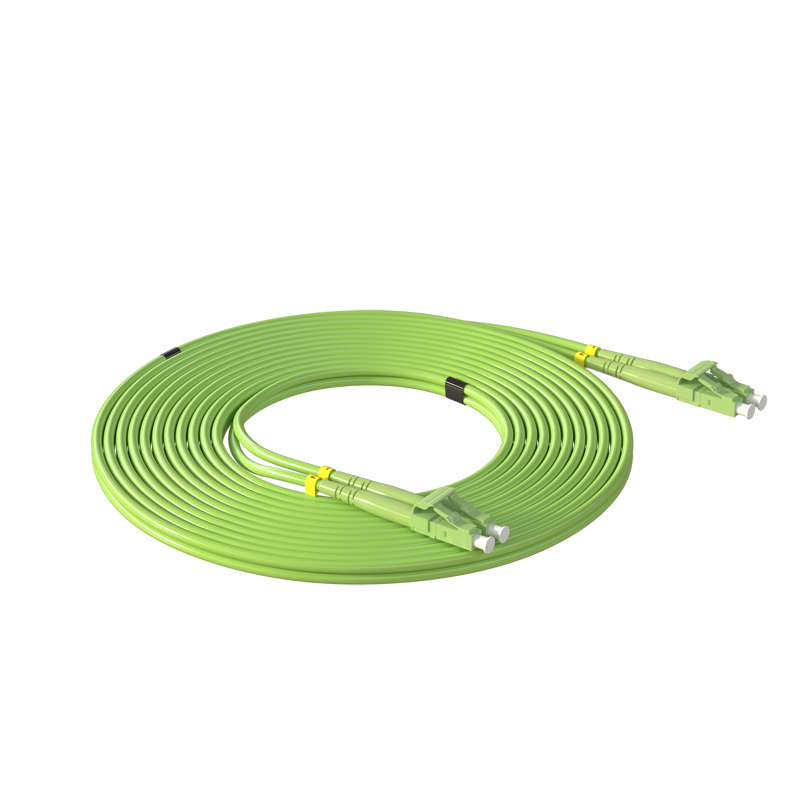

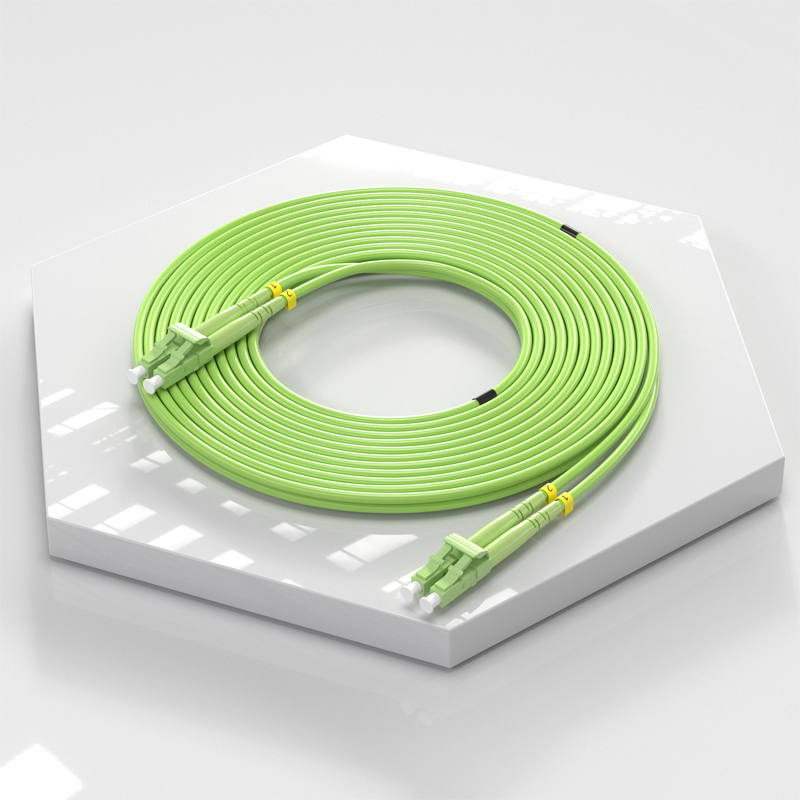

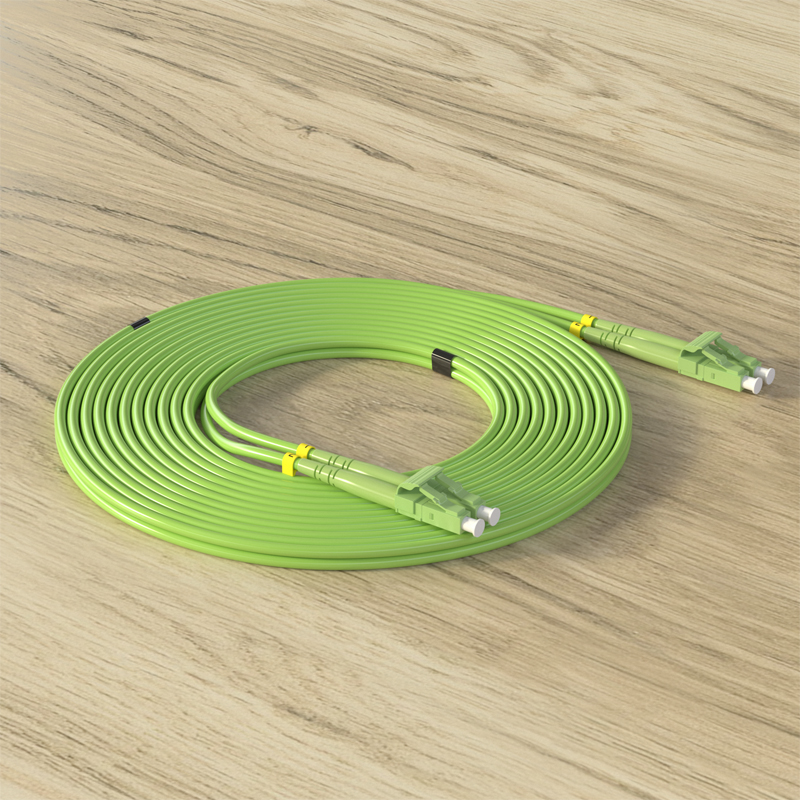

LC to LC 100G OM5 Multimode Fiber Optical Cables

OM5 Fiber Cables Introduction:

According to ISO / IEC 11801, OM5 optical fiber specifies a wider wavelength range between 850nm and 953nm. It was created to support short wave division multiplexing (SWDM), which is one of many new technologies developed to transmit 40Gb / s and 100GB / s.

OM5 fiber is a laser optimized multimode fiber (MMF), which specifies the bandwidth characteristics for wavelength division multiplexing (WDM). The purpose of this new fiber classification method is to support a variety of "short" wavelengths between 850nm and 950nm, which are suitable for high bandwidth applications after polymerization.

OM5 optical fiber technology was originally developed for the application of data center. From the current development, it will soon become an ideal choice for building backbone network.

It can not only support 802.11ac Wi Fi system, but also support high-density 5G wireless network.

OM5 fiber Cable Construction:

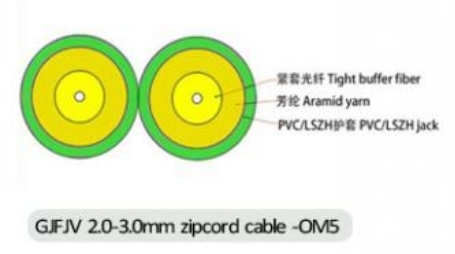

GJFJV 2.0/3.0mm zipcord cable OM5 50/125u

Cable color: Lime green

Cable Jacket: PVC, LSZH, OFNR, OFNP

OM5 Fiber Optic Patch Cord Specification:

Type of Fiber ：MM-50/125 OM5 100G, 2.0/3.0mm, Duplex, PVC/LSZH/OFNR/OFNP jacket

Type of Sleeves in the connectors：PC Zirconia Ceramic

Type of Connectors:  LC

Fiber core: 2C

Color: Lime green

OM5 Fiber Optic Patch Cord Features:

1.Using high precision ceramic ferrule

2. low insertion loss and high return loss

3. high stability and repeat

4.be according with the telcordia GR-326-CORE standard

OM5 Fiber Optic Patch Cord Applications:

 -CATV;

-Active device termination;

-Telecommunication networks;

-Local Area Networks(LANs);

-Data Processing networks;

-Premise installations;

-Wide Area Networks(WANs).
