Product Description

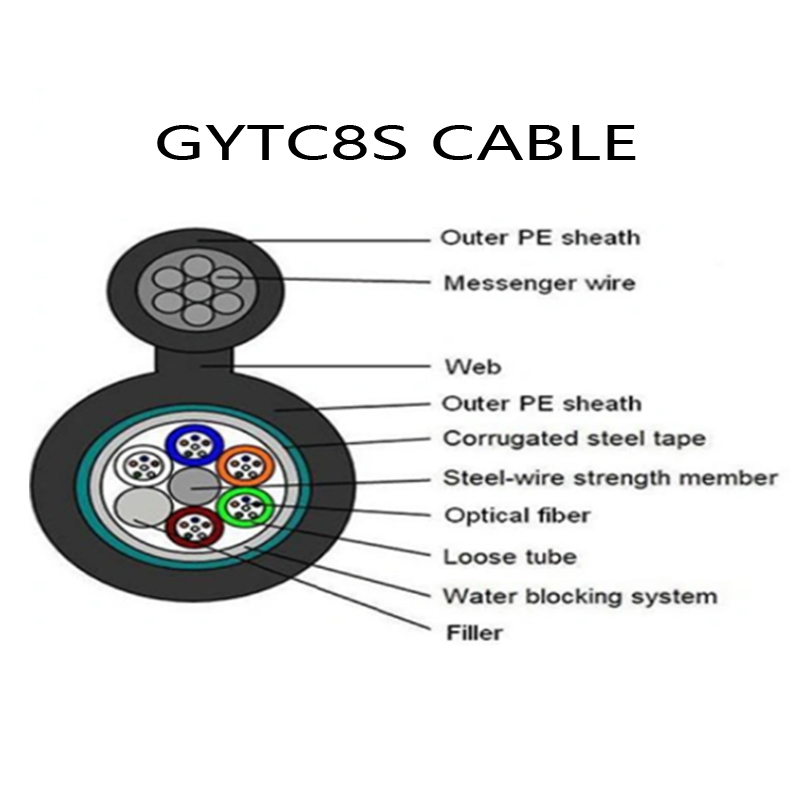

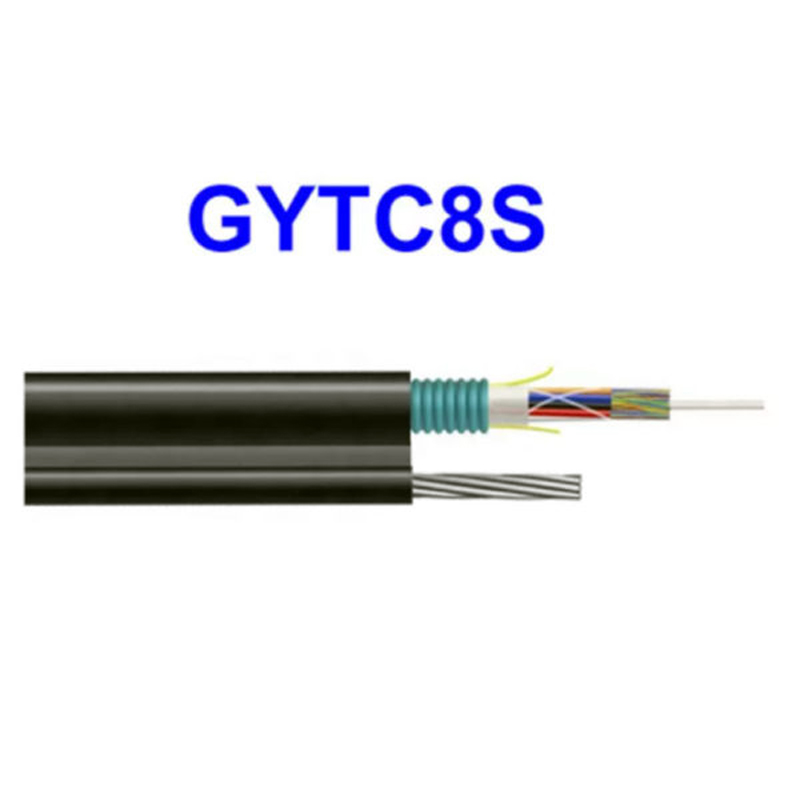

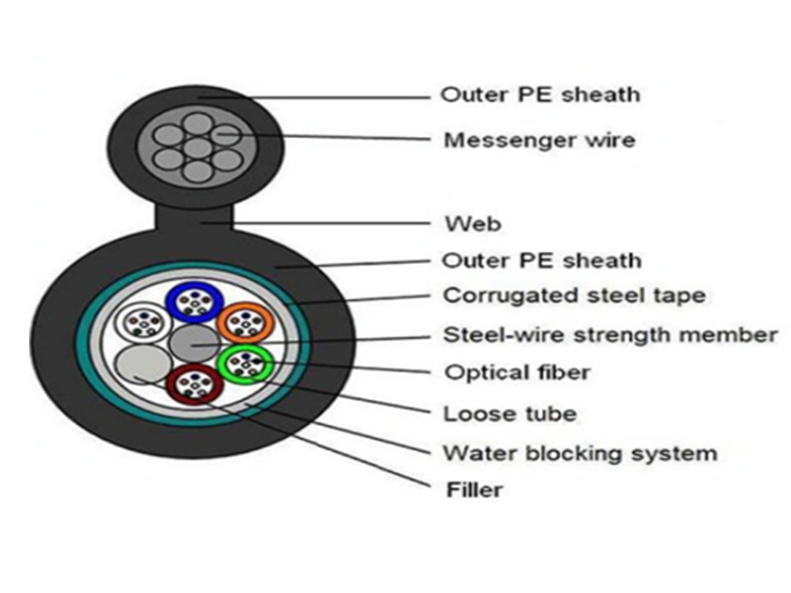

GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multi mode GYTC8S fiber cables from 2-fiber type to 144-fiber type.
| Cable Count |
Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 24 | 7.0×14.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 36 | 7.0×14.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 42 | 7.0×14.5 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 48 | 7.0×15.5 | 245.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 60 | 7.0×15.5 | 245.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 72 | 7.0×15.5 | 245.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 144 | 7.0×15.5 | 285.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
