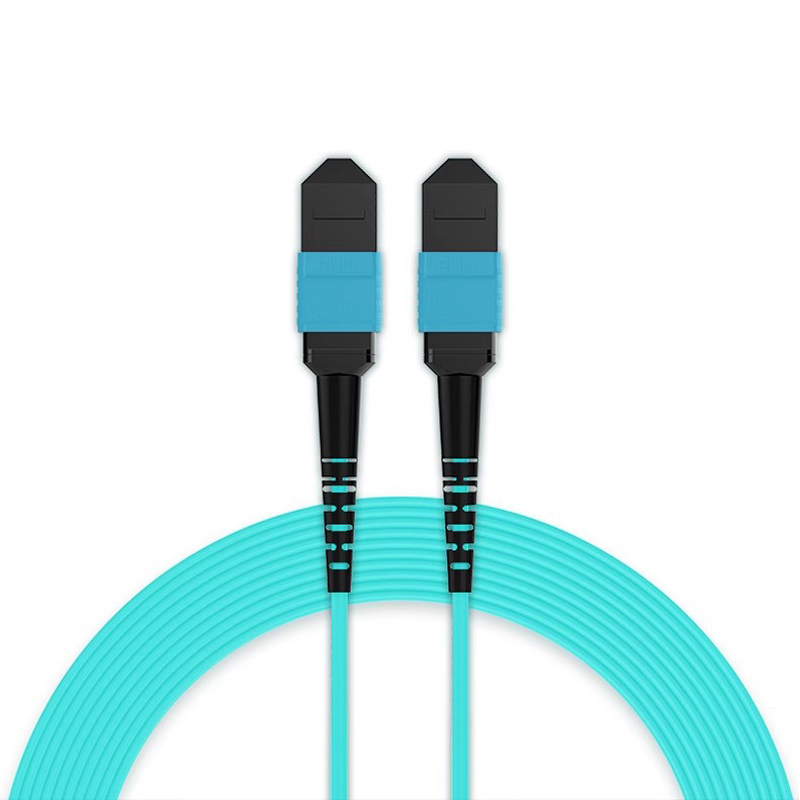

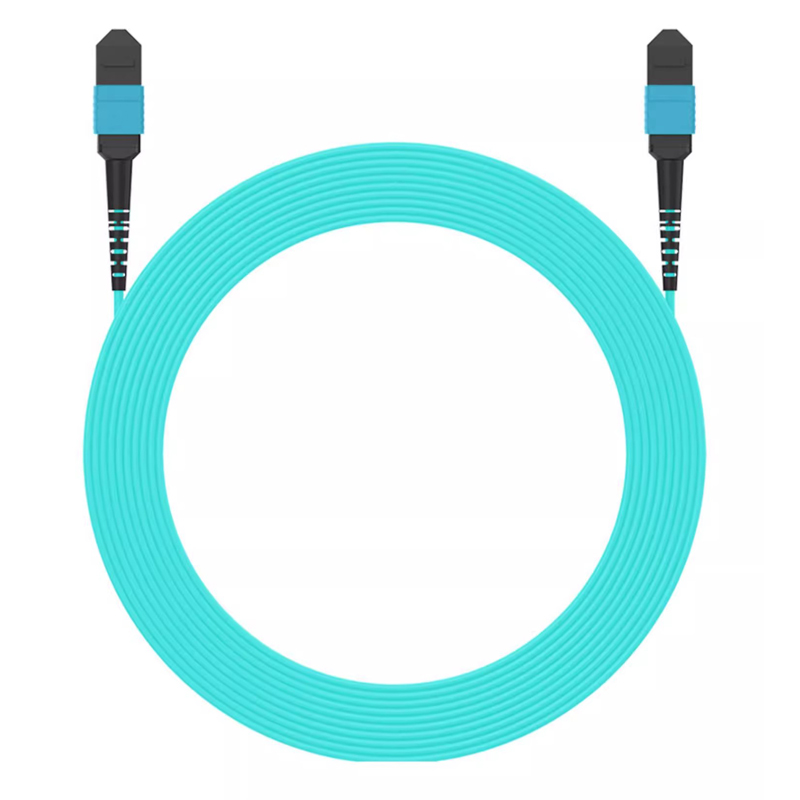

24 Cores MTP MPO Multimode OM3 Fiber Optic Trunk Cable

PRODUCT DESCRIPTION

The MPO/MTP Trunk cable is a multi-fiber cable assembled with MPO/MTP connector at either end. It is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connection.

It is widely used in the data center, central office, and any other high-density applications, both at single-mode and multi-mode wavelength.

MTP/MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

0.35dB IL, MTP Female to MTP Female connector and 3.0mm Plenum (OFNP) bunch cable is designed for 40G/100G direct connection and high-density data center applications.

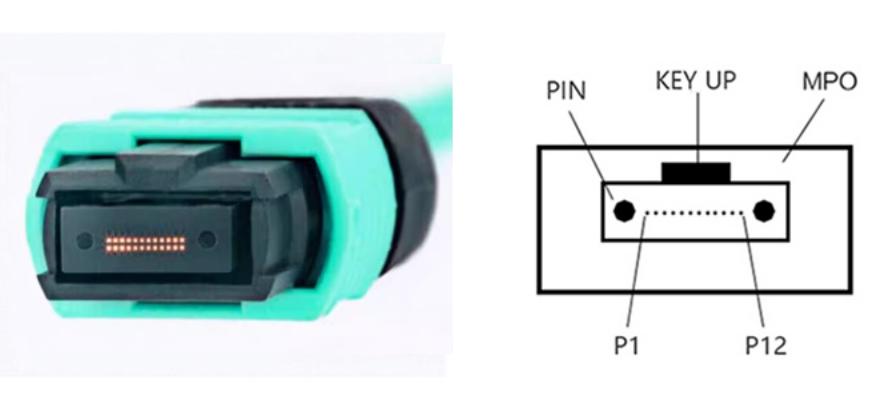

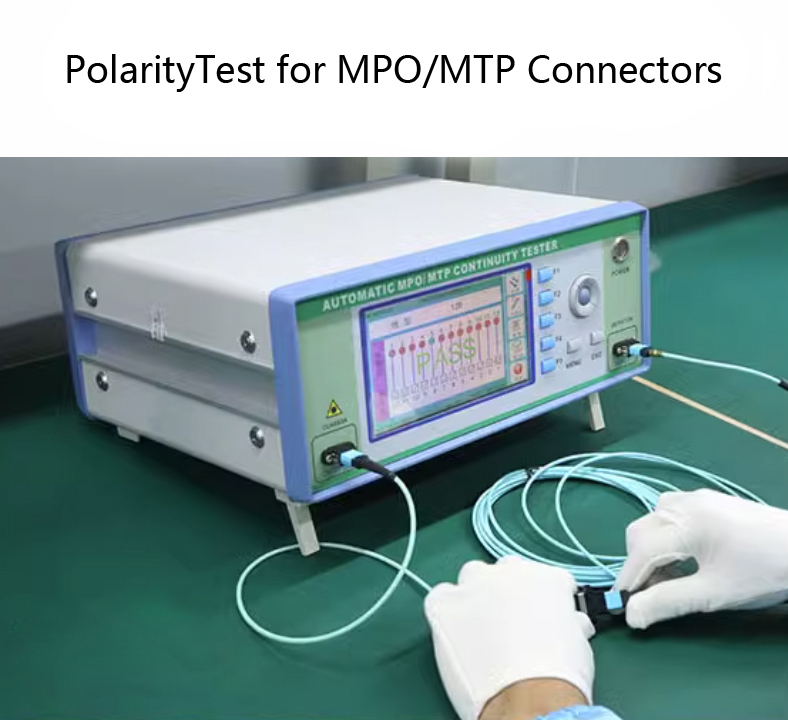

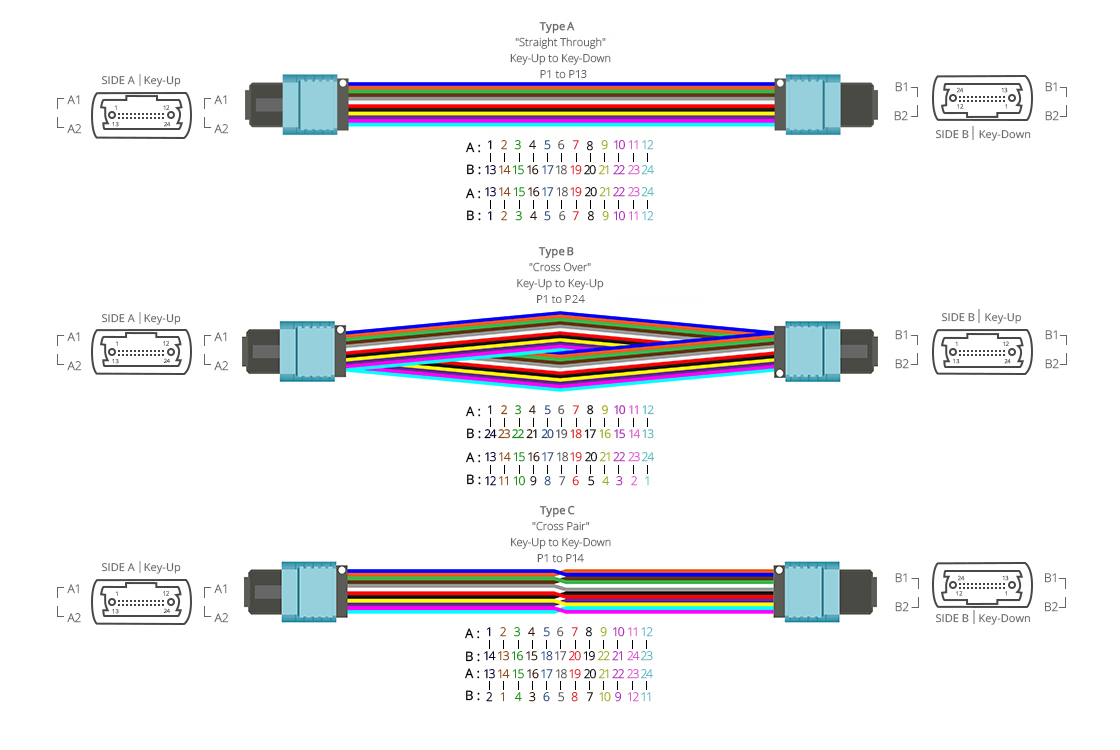

MPO/MTP patch cord is not currently designed for field-fit applications, so it must be factory terminated. Since the sequence of the fibers cannot physically be changed after termination, making the polarity clear is important. According to IEC，there are three types, Polarity A, B, and C. Which type to choose depends on the individual applications. If the polarity is not be made correctly, the whole system will not work normally. Kindly refer below chart and confirm which polarity type you need.

FEATURES

• Options of 12 to 144 fibers
• With 4、8、12 or 24 core connector,minimizing faulty and reduce wiring space

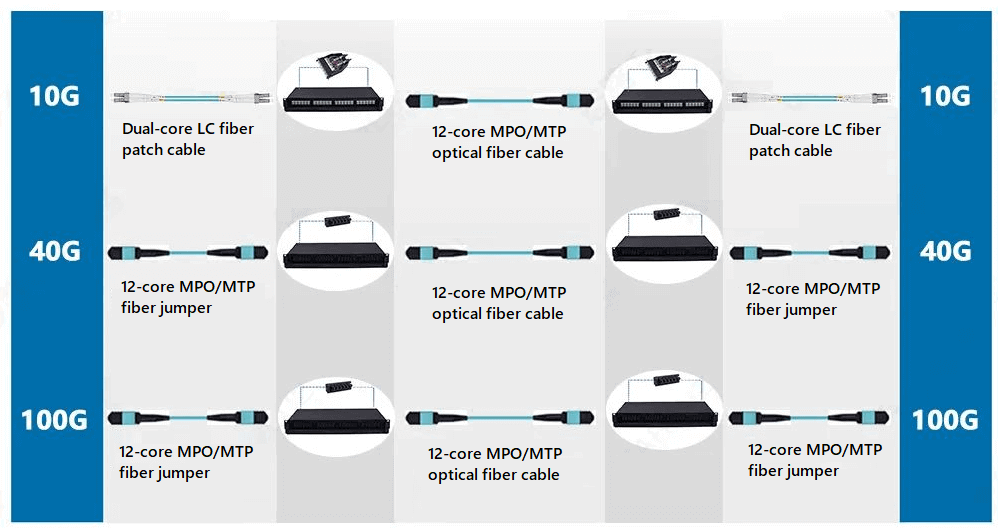

• Smoothly upgrade from 10G to 40G, 100G network ,the time delay index of 100G transmission is supported
• Available  in  single  mode(9/125um), multimode(50/62.5/125um), meet  client's needs in different industries
• Round  mini cable  structure,eliminate bend sensitivity, make  storage  and installation convenient

Technical Information

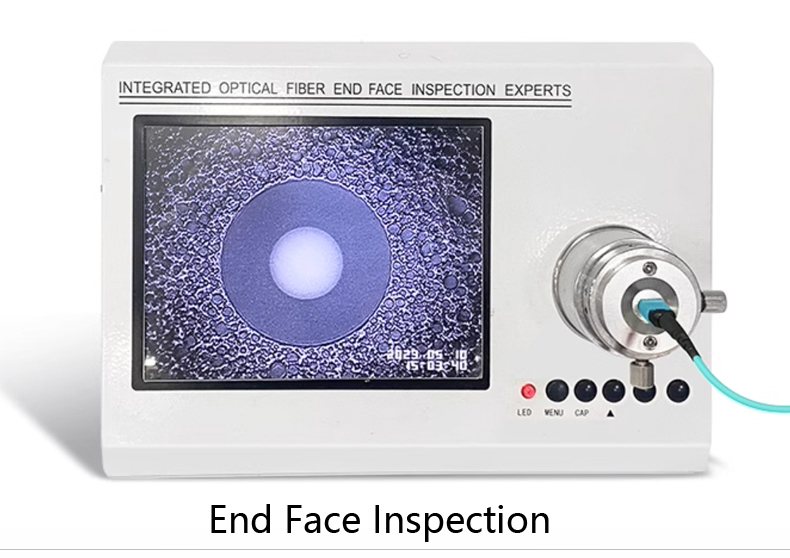

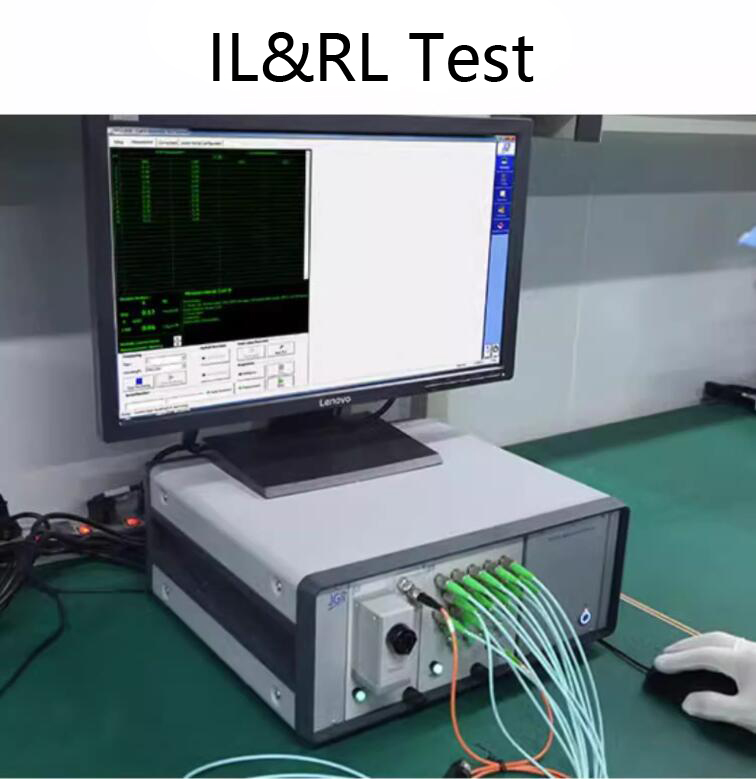

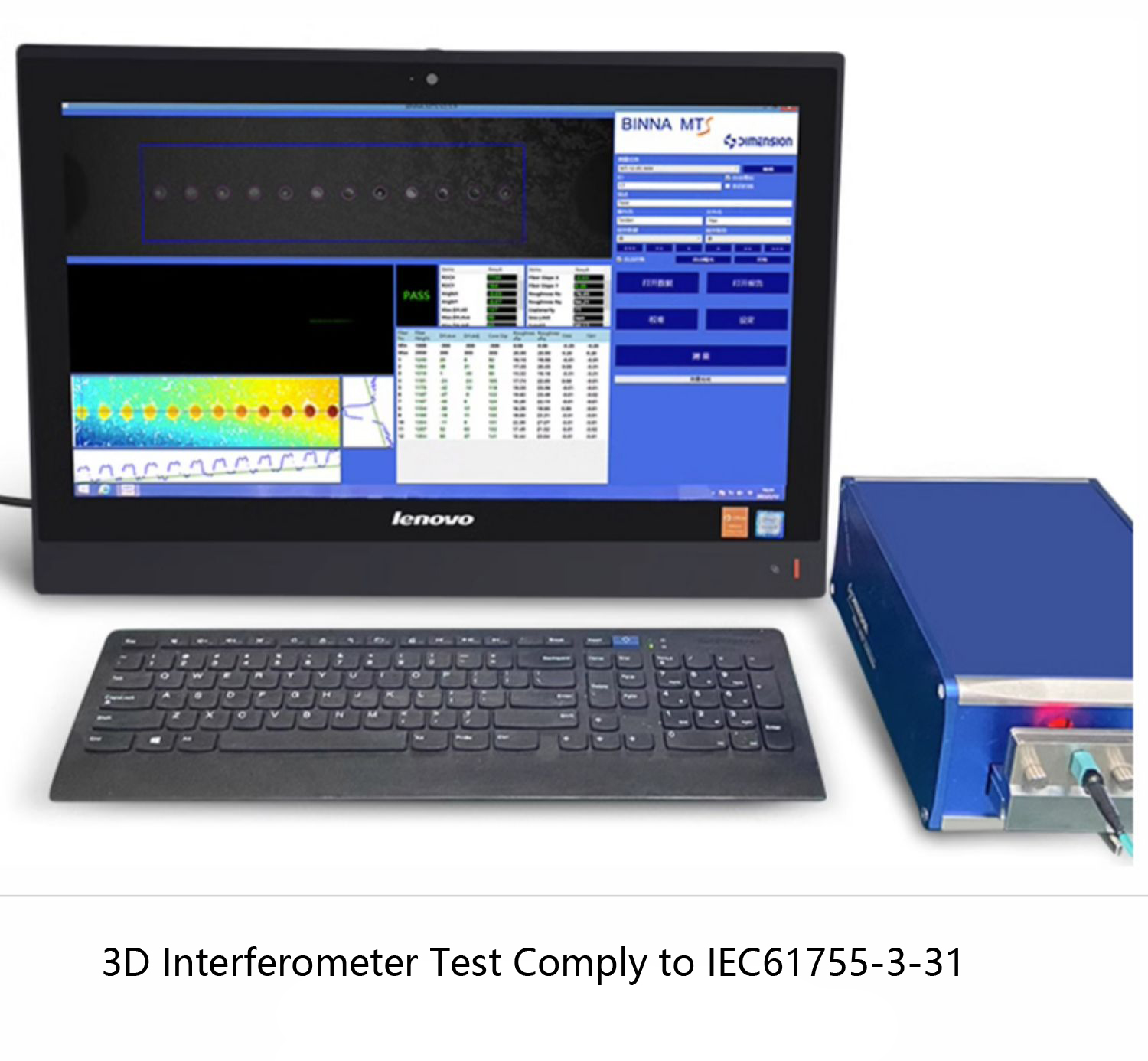

Test Assured Program

Range of application

• Optical System Access Network
• Telecommunications networks
• Broadband/CATV networks
• Data communications networks, including high-bandwidth equipment

Quality Certification:

Quality and standards are the foundation of Haiyu Optical . We are dedicated to providing customers with the outstanding, standards-compliant products and services. Haiyu Optical has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

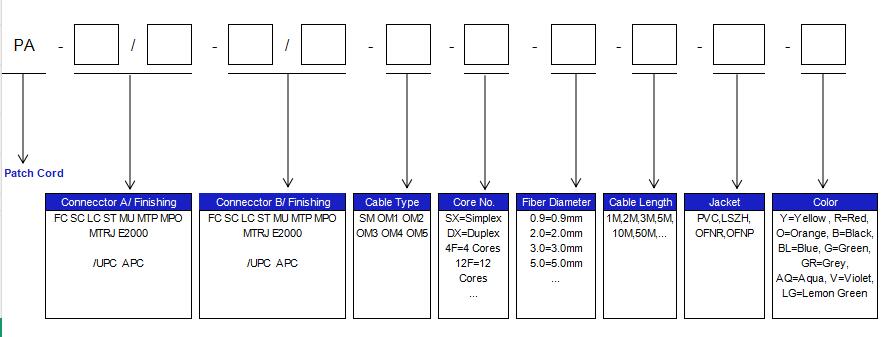

Order Informations:
